FEATURES
§ Small machine size, easy movement. Suitable for flat knit fabrics and its cut patterns fusing press need.
§ Its open structure can be used for larger cuts, such as: sleeve cuts, etc.
§ It has rotary strip-off, which can enable the cuts to be separated and not to foam or deform.
§ It has the device to prevent deviation of belt, so it is unnecessary to disassemble the machine to remove the belt deviation,thus ensuring the working life of the belt.
§ It has the special pressure assistance device, ensuring the largest pressure can reach 1.5kg/cm
§ Its electronic temperature adjuster and special heating device can minimize the temperature error.
§ It uses a Teflon transmission belt.
§ Cleaning beam can clean the belt at any time.
§ Powerful cooling down fan can prevent the damages of electronic parts in high temperature.

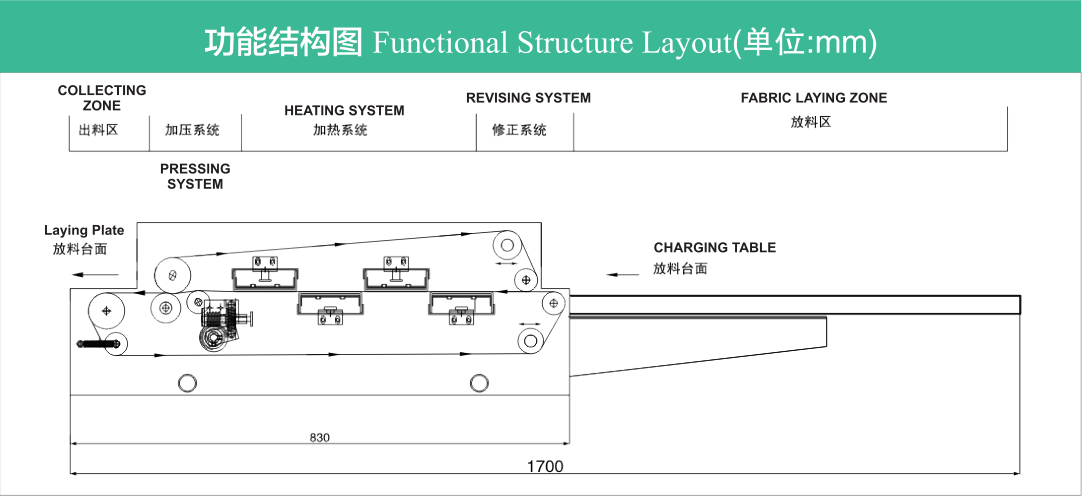

TF-450 Functional Structure Layout
Specification
Model | TF-450 |
| Power supply | 1P/220V |
| Motor | 40 |
| Power | 3.6KW |
| Maximum pressure | 1.5 |
| Set temperature | 常温-180℃ |
| Fusing Width | 450 |
| Fusing Time | 10-34 |
| Cloth scraper | 旋转拨片 Rotary-off |
| Machine size LxWxH(mm) | 1700x910x360mm |
| Packing size LxWxH(mm) | 1090x1000x570mm |
| N.W / G.W | 140/170kgs |
